ETL

An ETL pipeline loads files, cleans them, splits them into chunks, embeds the chunks, and writes them to a vector store. Chat flows and harnesses then search that store with the ETL Retriever node. ETL in the sidebar lists your pipelines. Each pipeline is a canvas of nodes: a source, a text splitter, a transform, an embeddings model, and a store.

Use ETL when an answer has to come from your own data, such as a product catalog, a handbook, or a code repository, and that data changes over time. A run only embeds what changed since the last run, keeps every saved version, and can run on a schedule. For a single document you paste into one chat flow, a document store is enough. To answer from the data in a chat, connect the pipeline to a harness or a chatflow with the ETL Retriever.

Install first: Docker, From source, or Render. The account is Sign in. Every save of a pipeline is also kept in Version history. The canvas pictures here show classic cards, with every setting on the card, except the Build with AI pictures, which show compact cards. With the default compact cards, select a card to change the same settings in its side panel. See Canvas cards.

The steps below use the Outdoor Catalog sample: a CSV of 33 outdoor products in samples/etl/data/outdoor-catalog.csv. It embeds with Local Hash Embeddings, which run on the server with no provider key. The last part connects the pipeline to a harness with an OpenAI model.

Open the ETL page

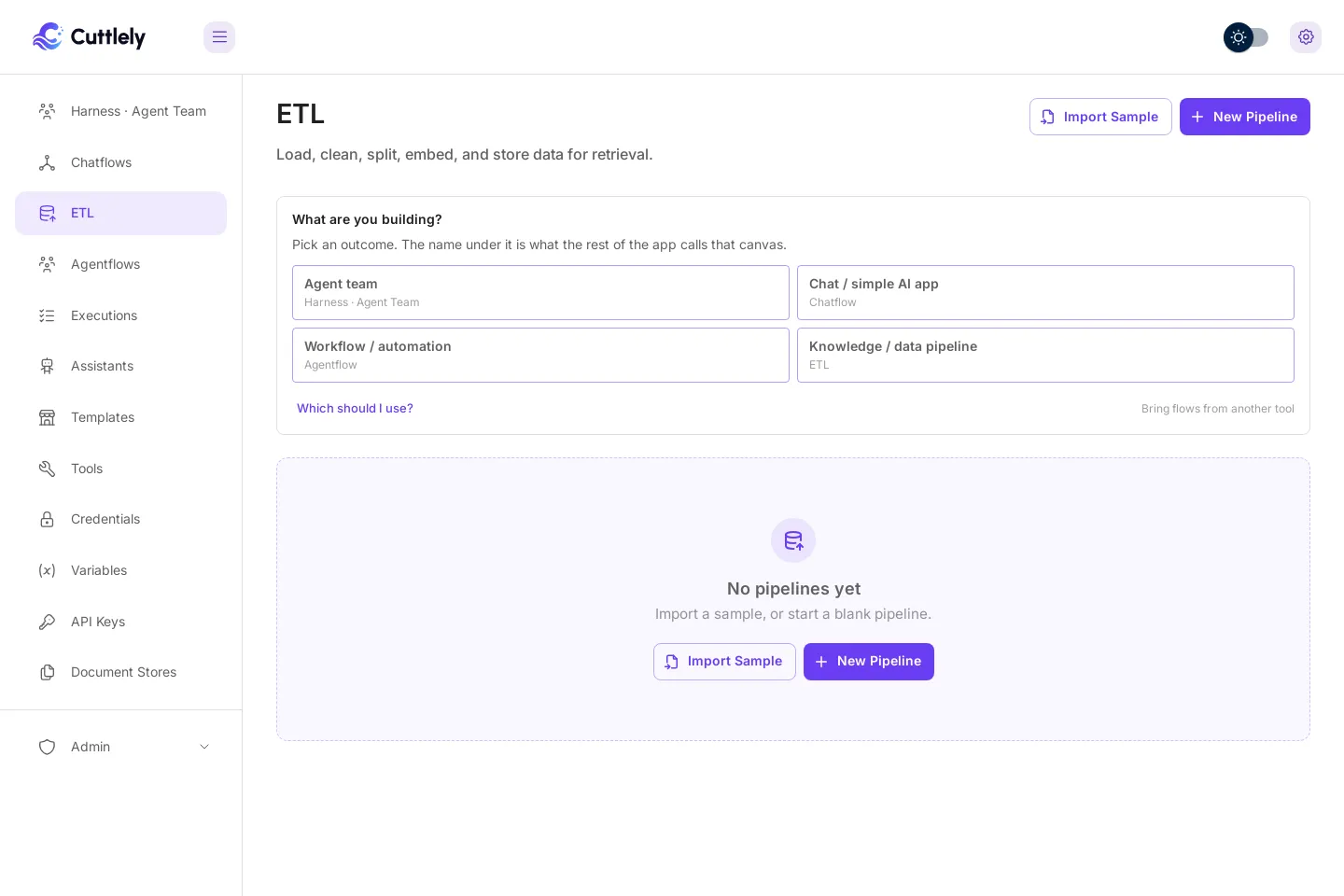

Select ETL in the sidebar. With no pipelines yet, the page says No pipelines yet and offers Import Sample and New Pipeline.

• Import Sample opens a menu with the two samples from samples/etl/.
• New Pipeline opens a blank ETL canvas. Add nodes with + (Add Node), then save.
• On a blank canvas, Build with AI builds a pipeline from a description of your data. See Build a pipeline with AI.

You can also open Templates in the sidebar and select the ETL chip, or select Knowledge / data pipeline on the What are you building? card.

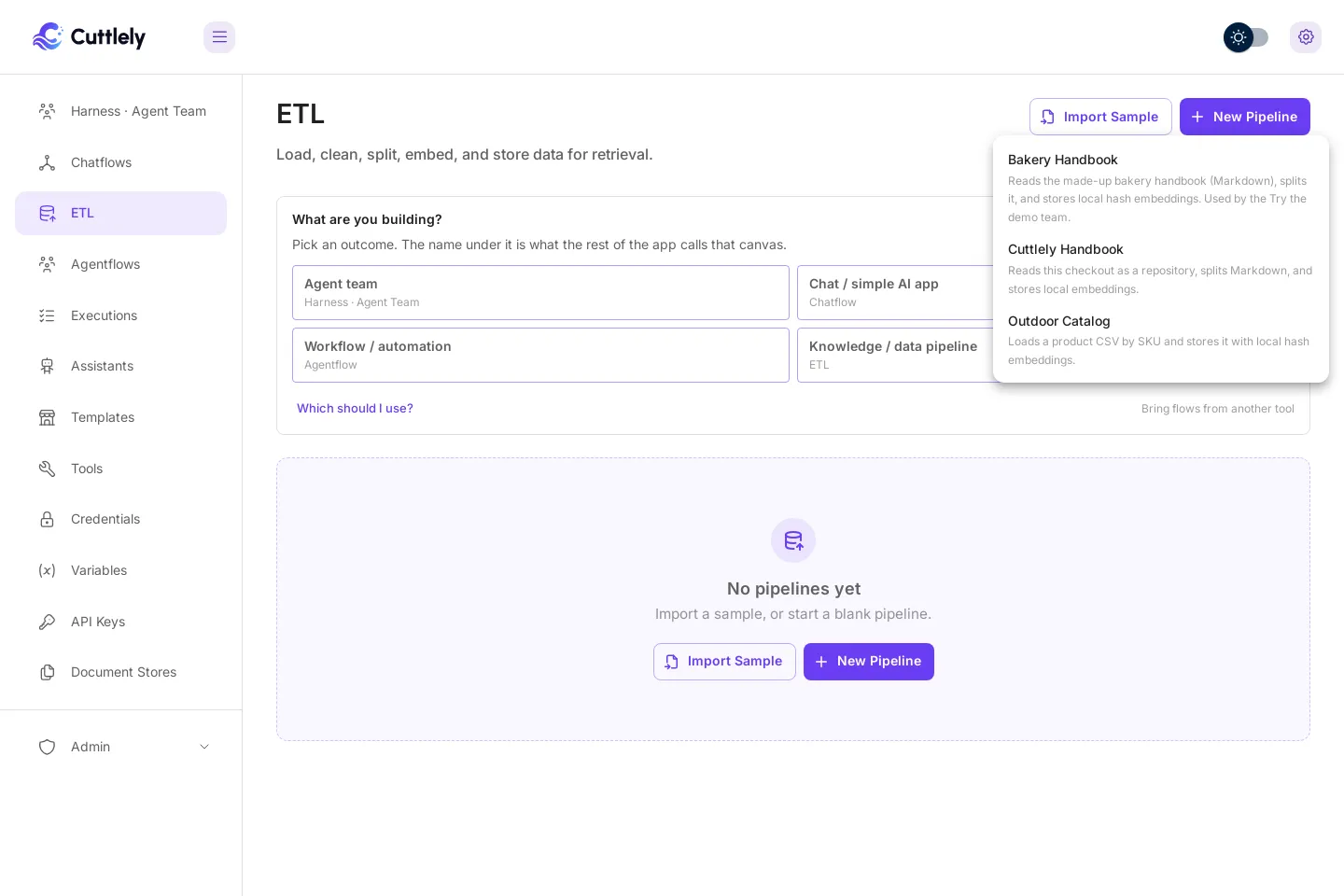

Import a sample

1. Select Import Sample.
2. Select Outdoor Catalog.

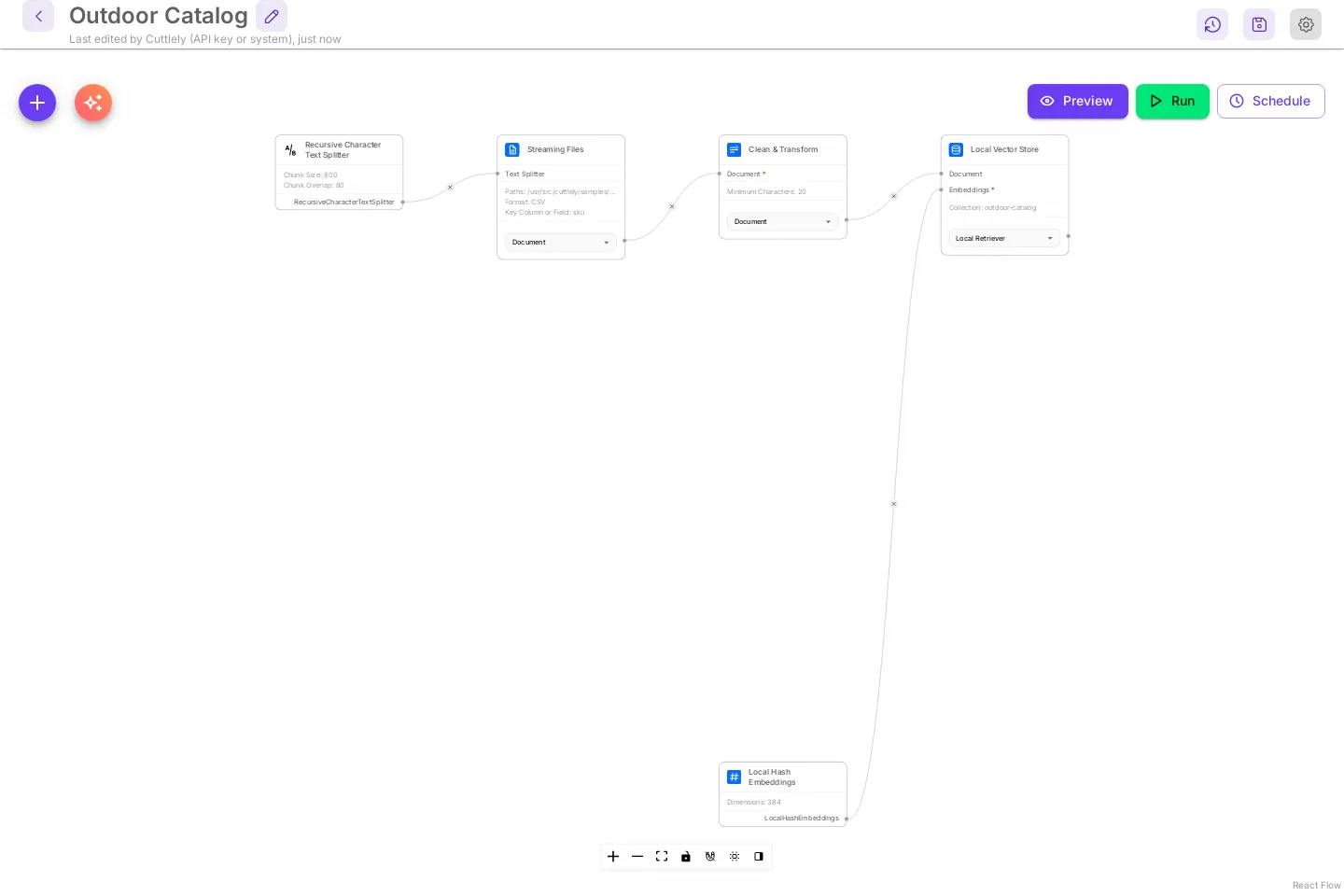

The sample is saved as version 1 and opens on its canvas, /etlcanvas/<id>. Paths on the Streaming Files node is already set to the sample CSV in your install.

Node	What it does
Streaming Files	Reads files or folders on the server, one path per line. Format is CSV here. Each CSV row becomes one document.
Recursive Character Text Splitter	Cuts long documents into chunks. Chunk Size 800 and Chunk Overlap 80. A product row fits in one chunk.
Clean & Transform	Normalizes whitespace and Unicode (NFC), can strip HTML, and drops documents shorter than Minimum Characters (20).
Local Hash Embeddings	Builds 384-dimension vectors on the server. No key and no cost. It matches words, not meaning. See Better matches.
Local Vector Store	Stores the vectors in the collection outdoor-catalog under CUTTLELY_ETL_DIR.

The header has Version history, Save Pipeline, and Settings at the top right. Preview, Run, and Schedule open the Pipeline panel on the matching tab. The panel’s first line reads v1 · 0 chunks indexed until a run has written the store.

An orange triangle on a card and an orange Sync Nodes button next to + mean a node was saved with an older version of that node than the app has now. Select Sync Nodes, then save. The save creates a new version.

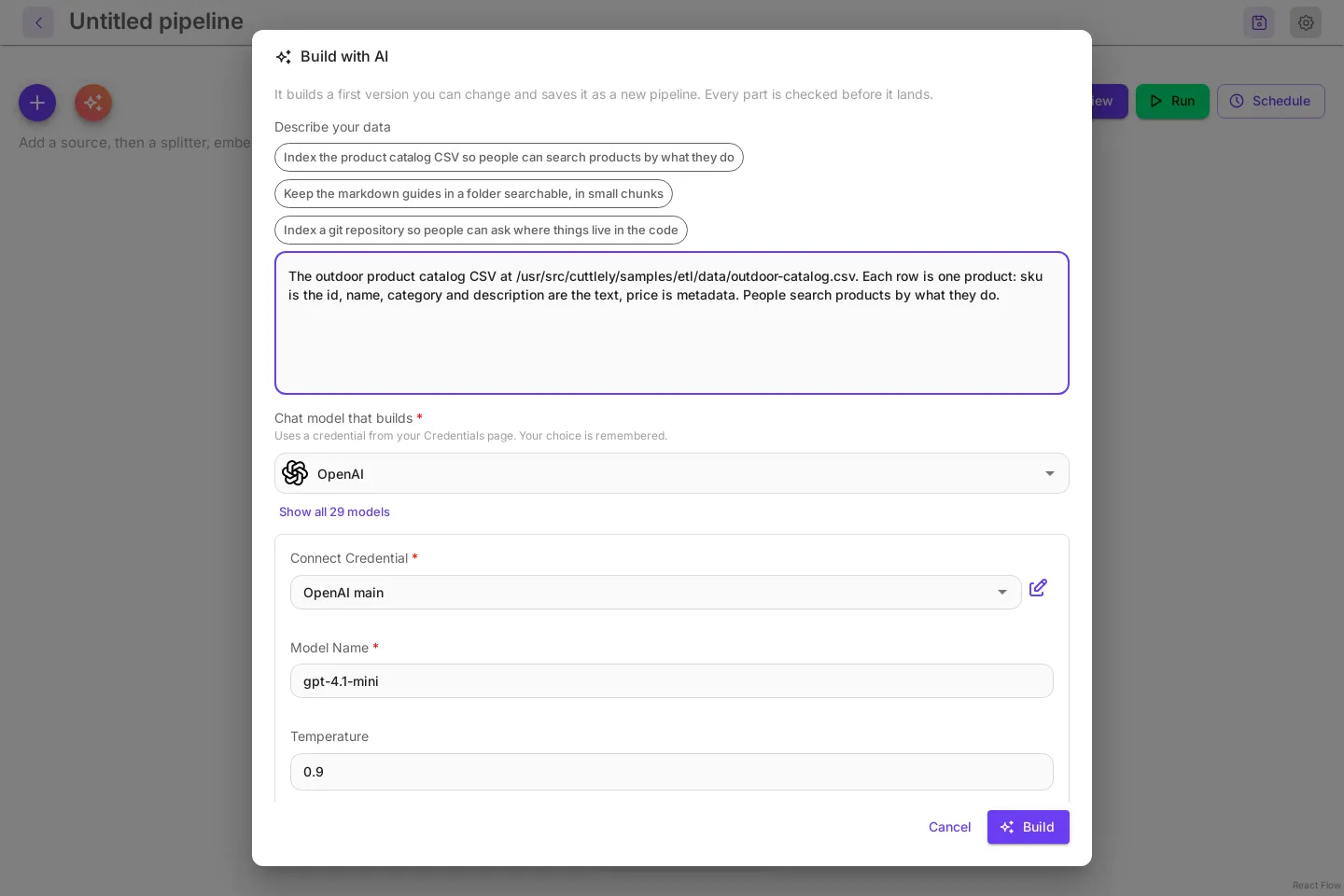

Build a pipeline with AI

Instead of adding nodes yourself, describe your data and let Build with AI put the pipeline together. These pictures show the default compact cards.

1. Open a blank ETL canvas with New Pipeline.
2. Select Build with AI, the sparkle button next to +.
3. Under Describe your data, write what to load and how people will search it. Give full paths on the server, in a folder a pipeline may read (see Which folders a pipeline can read), name the id column of a CSV, and say which files of a repository you want. You can also select one of the three examples and edit it.
4. Under Chat model that builds, Cuttlely starts on a model you have a key for on the Credentials page, with your key picked when only one fits; Show all models and More settings hold the rest. There is no built-in key. Your choice is remembered for next time.
5. Select Build.

The builder uses the bundled pipelines as examples. Unless you name others, it uses Local Hash Embeddings and the Local Vector Store, so the pipeline runs with no provider key. Before anything is saved, it checks the plan and fixes what fails:

• Every path is a full path on the server.
• A CSV, TSV, or JSONL source names its id column, so a second run updates rows instead of adding them again.
• One source line ends in exactly one store, and every card reaches it.
• Each Include glob on a repository source has a slash. README.md would match every README in every folder, so the builder writes /README.md for the top-level file or **/README.md for all of them.

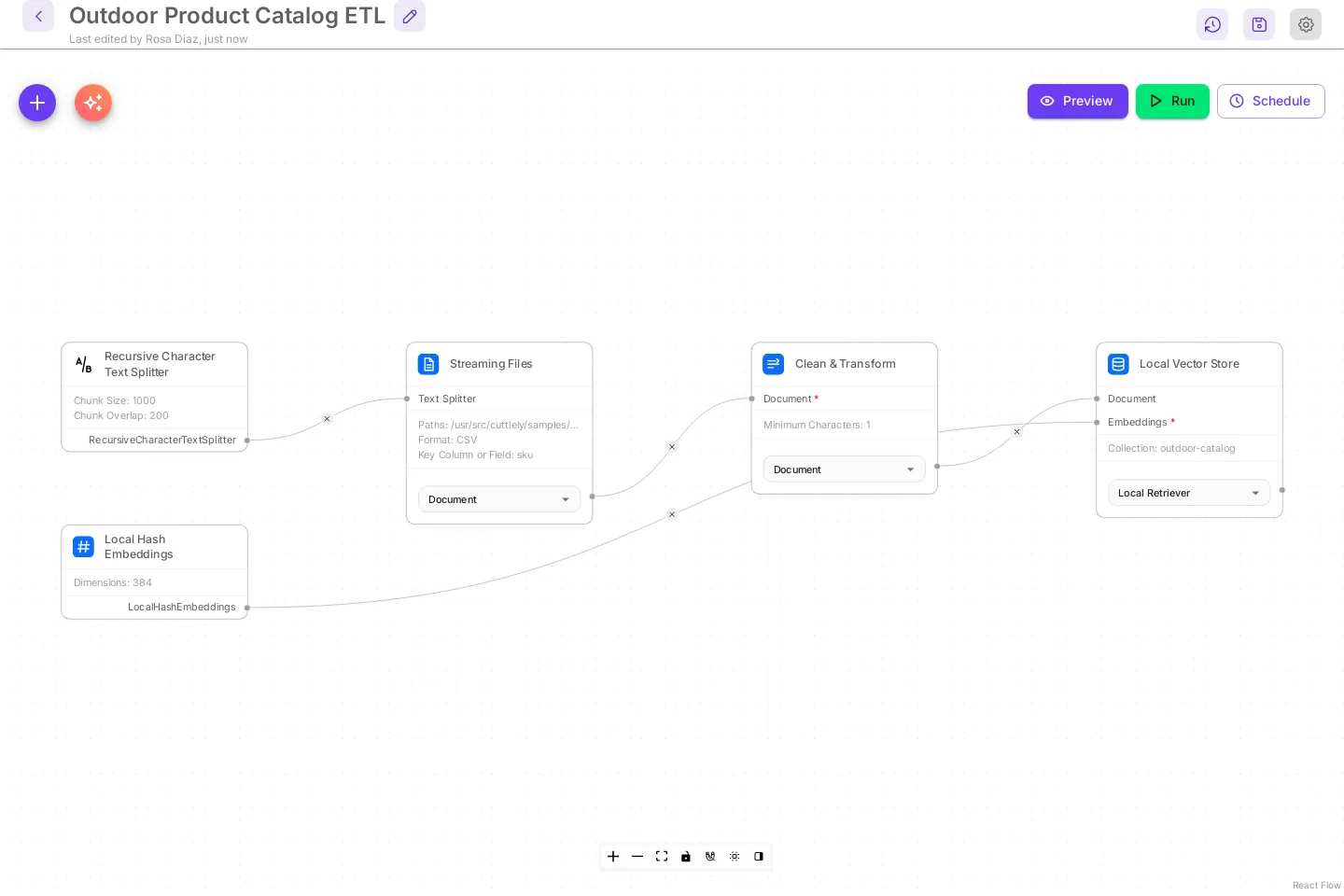

The pipeline is saved right away as a new pipeline, named after its title (with a number when the name is taken), and opens on its own canvas. A message says what was built. When a node needs a credential you don’t have yet, the message names it.

Select a card to check or change its settings, then preview and run it as below. The builder also writes three starter searches. After the first run they wait under Try retrieval on the Run tab; select one to search.

Build with AI always makes a new pipeline. When the canvas already has cards, the new pipeline opens in a new tab, so nothing on this canvas is lost. With classic cards, the same button builds the same pipeline with full-size cards. Harnesses and chatflows have the same button: see Build a team with AI and Build a chatflow with AI.

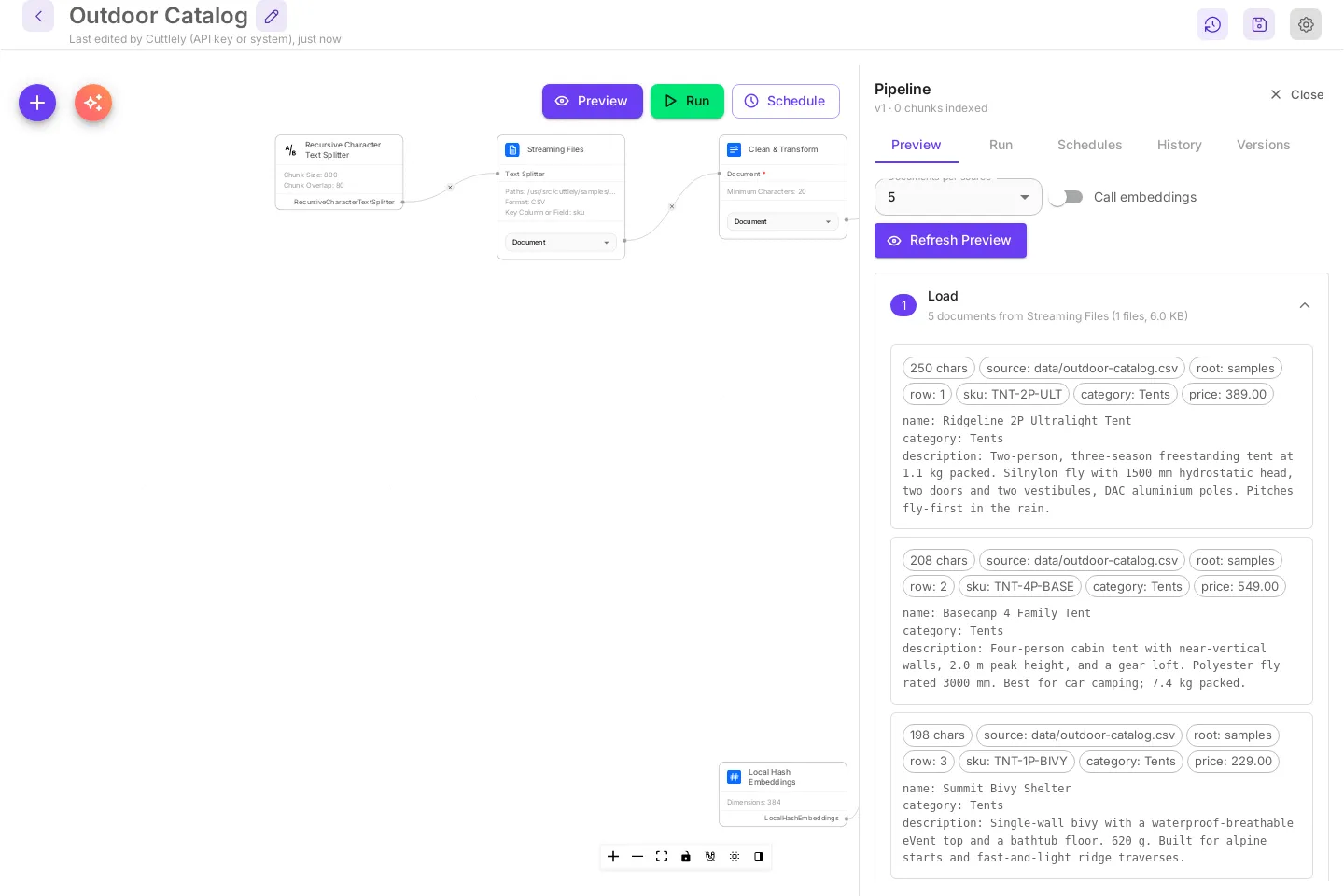

Preview the data

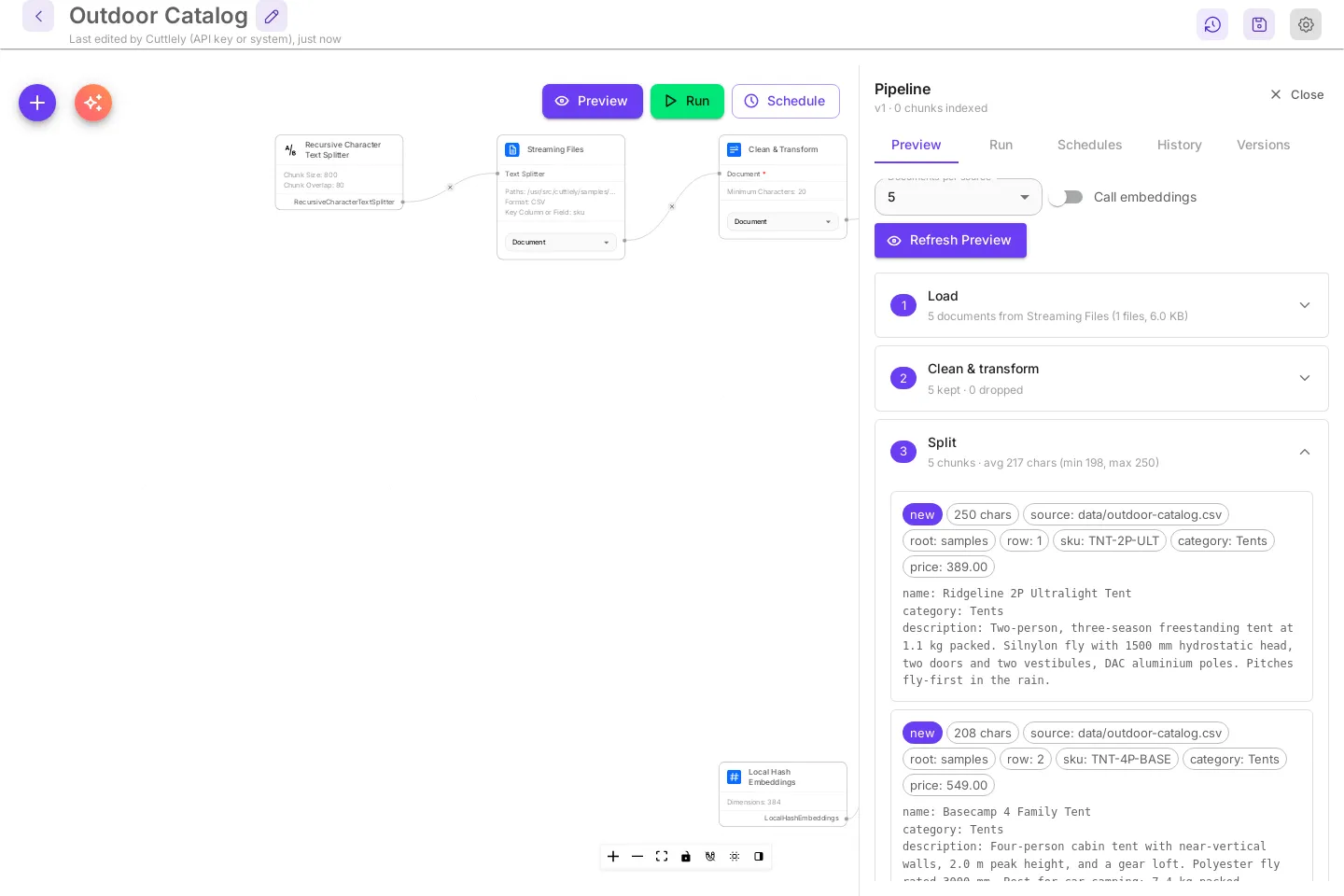

Preview runs the pipeline on a few documents and shows what each step would produce. It never writes to the store.

1. Select Preview.
2. Leave Documents per source at 5, or pick 3, 10, or 25.
3. Select Refresh Preview.

The preview has five numbered steps. Select a step to open it.

Step	What it shows
1 Load	The documents read from each source, with their metadata. CSV columns other than the text become chips.
2 Clean & transform	How many documents were kept and dropped.
3 Split	The chunks and their sizes. A new chip marks a chunk that is not in the store yet.
4 Embed	The embeddings model, its dimensions, and the time it took.
5 Store	Written by a run. Preview never writes.

Call embeddings is off by default. Local Hash Embeddings always run in the preview. Turn it on to also call a provider embeddings model. That call is billed to the model’s credential.

A problem shows as a red message above the steps, for example a path that does not exist. See When a run fails.

Run the pipeline

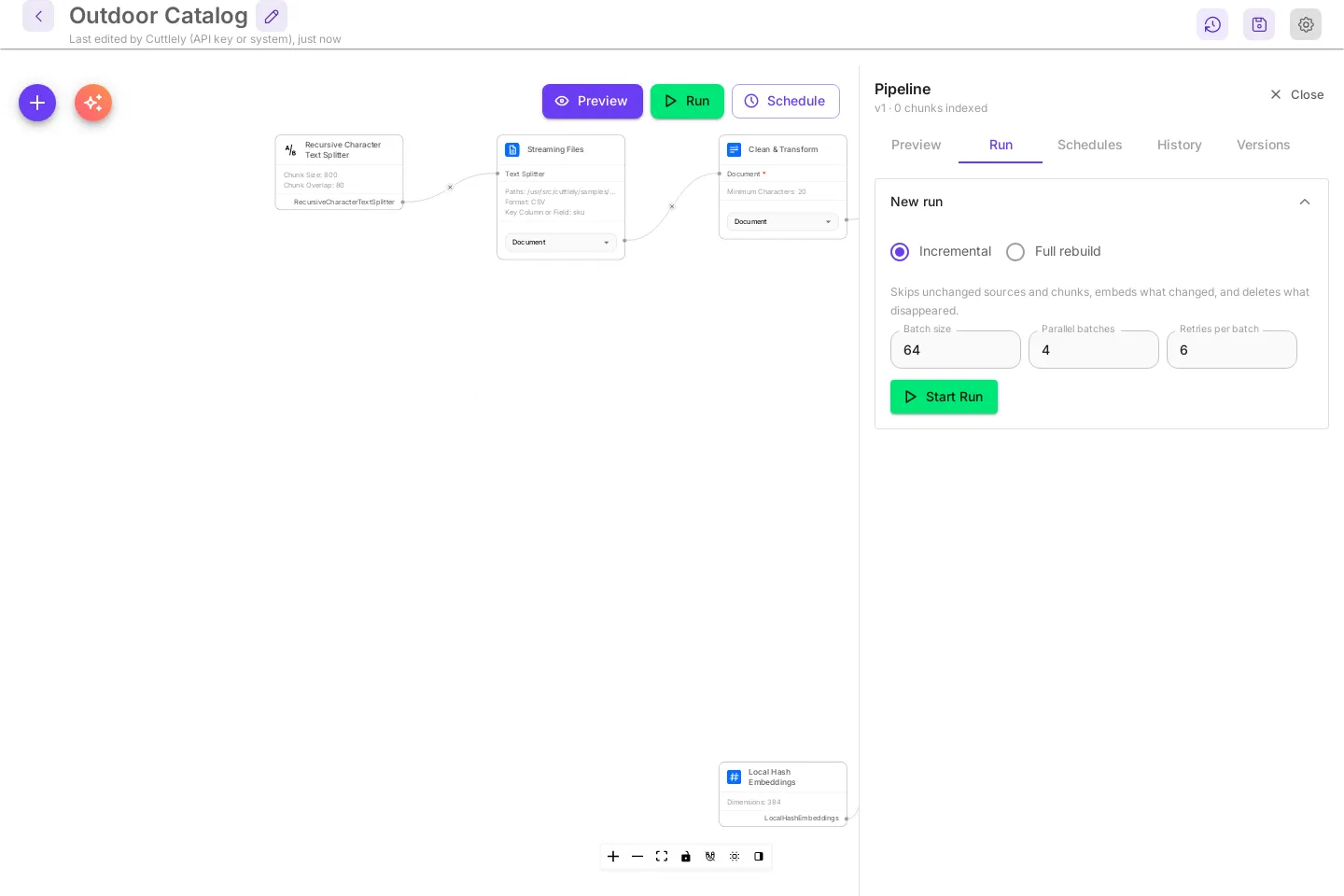

A run reads every source, embeds the chunks, and writes them to the store. Save the pipeline first. A run uses the last saved version, and the panel says Save your changes first. Each save that changes the pipeline creates a new version. while there are unsaved changes.

1. Select Run.
2. Leave Incremental selected.
3. Select Start Run.

Setting	Meaning
Incremental	Skips unchanged sources and chunks, embeds what changed, and deletes what disappeared. Use it for every normal run.
Full rebuild	Re-embeds every chunk, then deletes what disappeared. Use it after you change the embeddings provider settings.
Batch size	Chunks per embeddings call. Default 64.
Parallel batches	Embeddings calls at the same time. Default 4. Lower it if the provider returns rate-limit errors.
Retries per batch	How many times a failed batch is tried again before the run fails. Default 6.

A run card appears under New run. The sample takes about a second.

The panel’s first line now reads v1 · serving v1 · 33 chunks indexed. Serving is the version the ETL Retriever searches.

Read the run card

Part	Meaning
Run and 8 characters	The start of the run id. The same id is in History.
v1 · incremental · attempt 1 · started just now	The version the run uses, the mode, and how many times it has been tried. A run keeps the version it started on, even if you save again while it runs.
Status chip	queued, running, paused, succeeded, partial, failed, or cancelled.
Progress bar	Bytes read of the total.
Embedded	Chunks embedded and written by this run.
Unchanged	Chunks that were already in the store. N sources skipped counts files that did not change at all.
Deleted	Chunks removed because their source row or file is gone.
Rejected	Records that failed the source’s rules, such as a missing required column or a value that is too long. The run finishes as partial.
Errors	Errors counted while the run read and wrote: a malformed or invalid record (it also counts under Rejected), a file that could not be read, or a record the store refused. The log names each one.
chunks/s, B/s, ETA, Elapsed	Live speed while the run is going. A run this small finishes before a speed is measured.

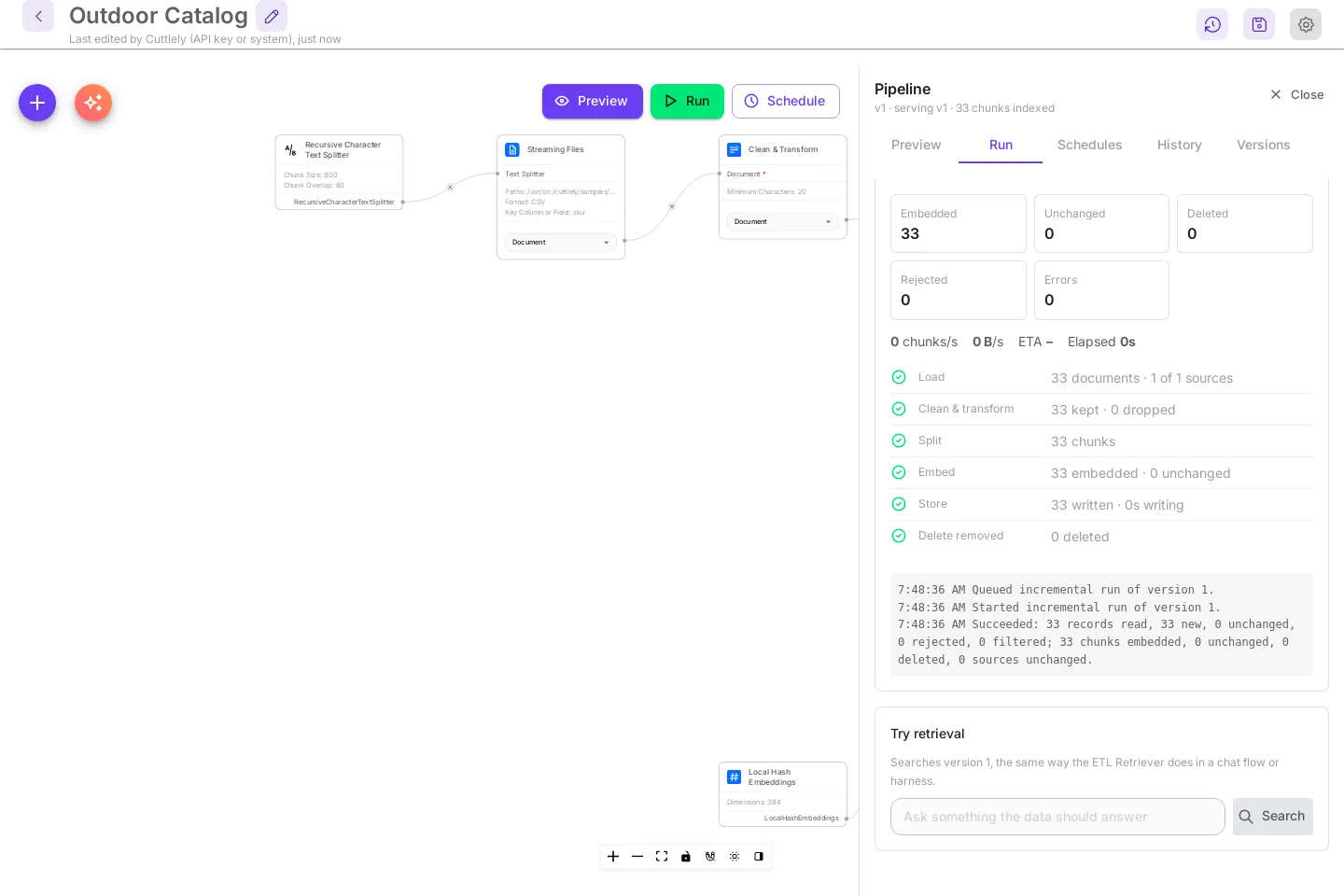

Below the numbers, each step has a check mark when it is done, then a line of counts. The log at the bottom lists what happened, with times.

While a run is going, Pause stops it after the current batch and Cancel stops it for good. A paused run shows Resume. A run that read to the end but rejected some records, or could not read a file, is partial. A file it could not read keeps the chunks from the last run. A partial run is served, the same as succeeded. If more than 5% of the records are rejected, after at least 100 records, the run fails instead and the served version does not change.

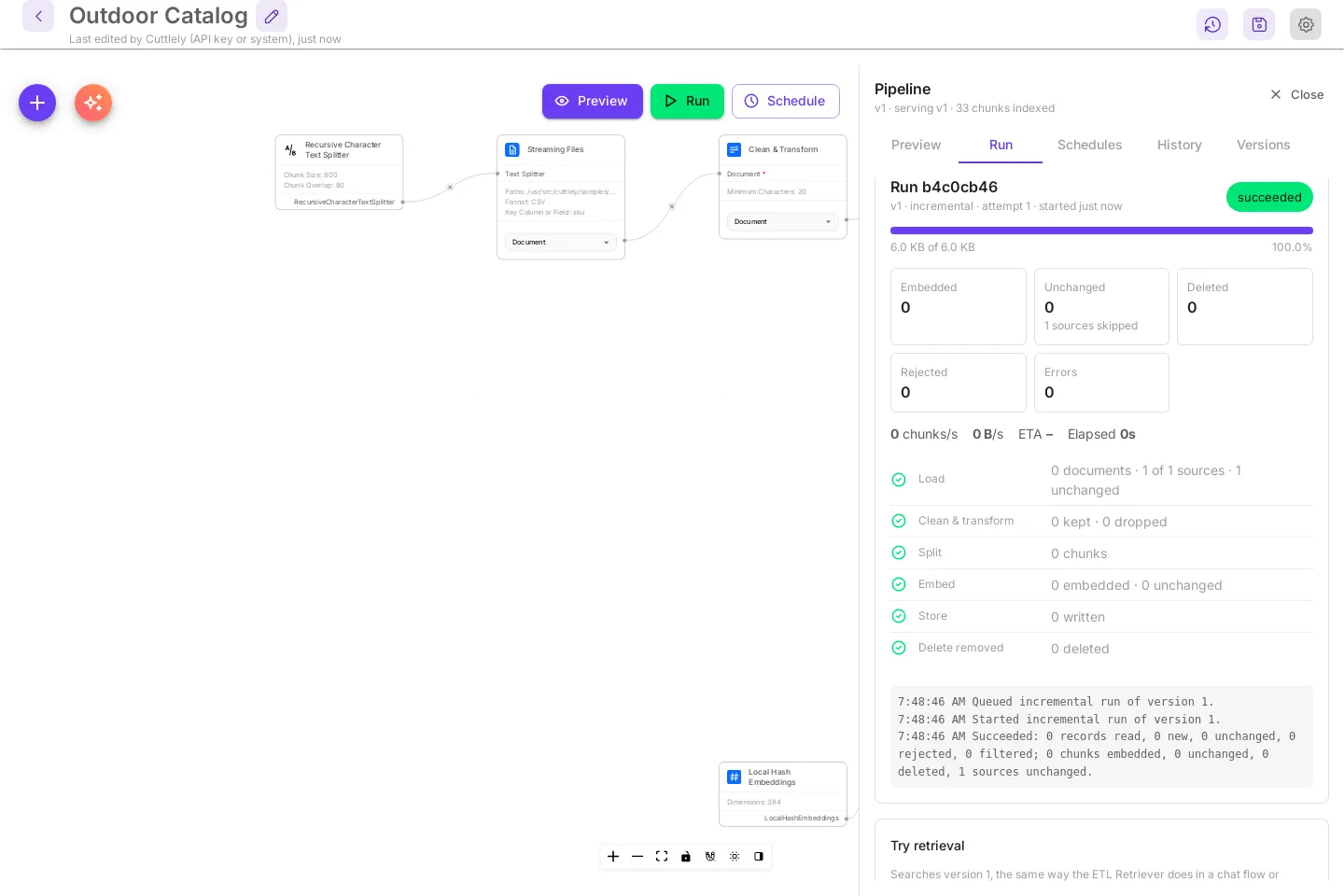

Run it again

Select Start Run again with nothing changed. The incremental run reads the file, sees it has not changed, and embeds nothing.

Add, edit, or remove rows in the CSV and run again. Only the changed rows are embedded, and rows you removed are deleted from the store.

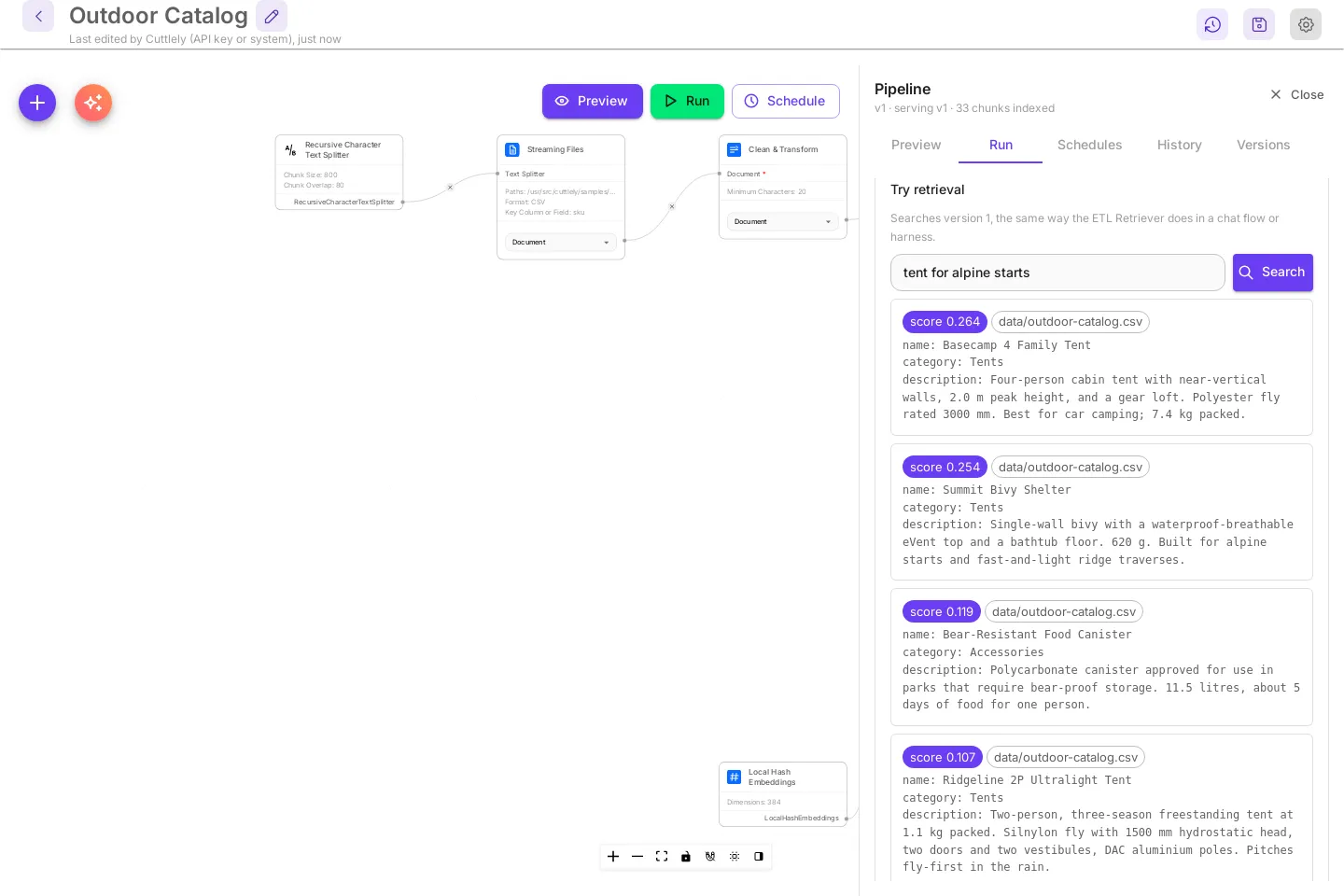

Try retrieval

Try retrieval is under the run card once a version is serving. It searches the serving version the same way the ETL Retriever does in a chat flow or harness.

1. Type a question in Ask something the data should answer, for example tent for alpine starts.
2. Select Search.

Each result shows its score, its source, and the chunk text. No matches. means the store has nothing close to the question.

A pipeline made with Build with AI also lists its starter searches under the search box. Select one to search with it.

Better matches

Local Hash Embeddings match words, not meaning. In the example, the Summit Bivy Shelter is the one built for alpine starts, but the family tent scores slightly higher because it shares more words with the question. To match on meaning, replace Local Hash Embeddings with a provider embeddings node, such as OpenAI Embeddings, select its credential, save, and run a Full rebuild.

When a run fails

To see a failure, change Paths on the Streaming Files node to a file that does not exist, such as products-2026.csv in the same folder, and save. The save creates version 2.

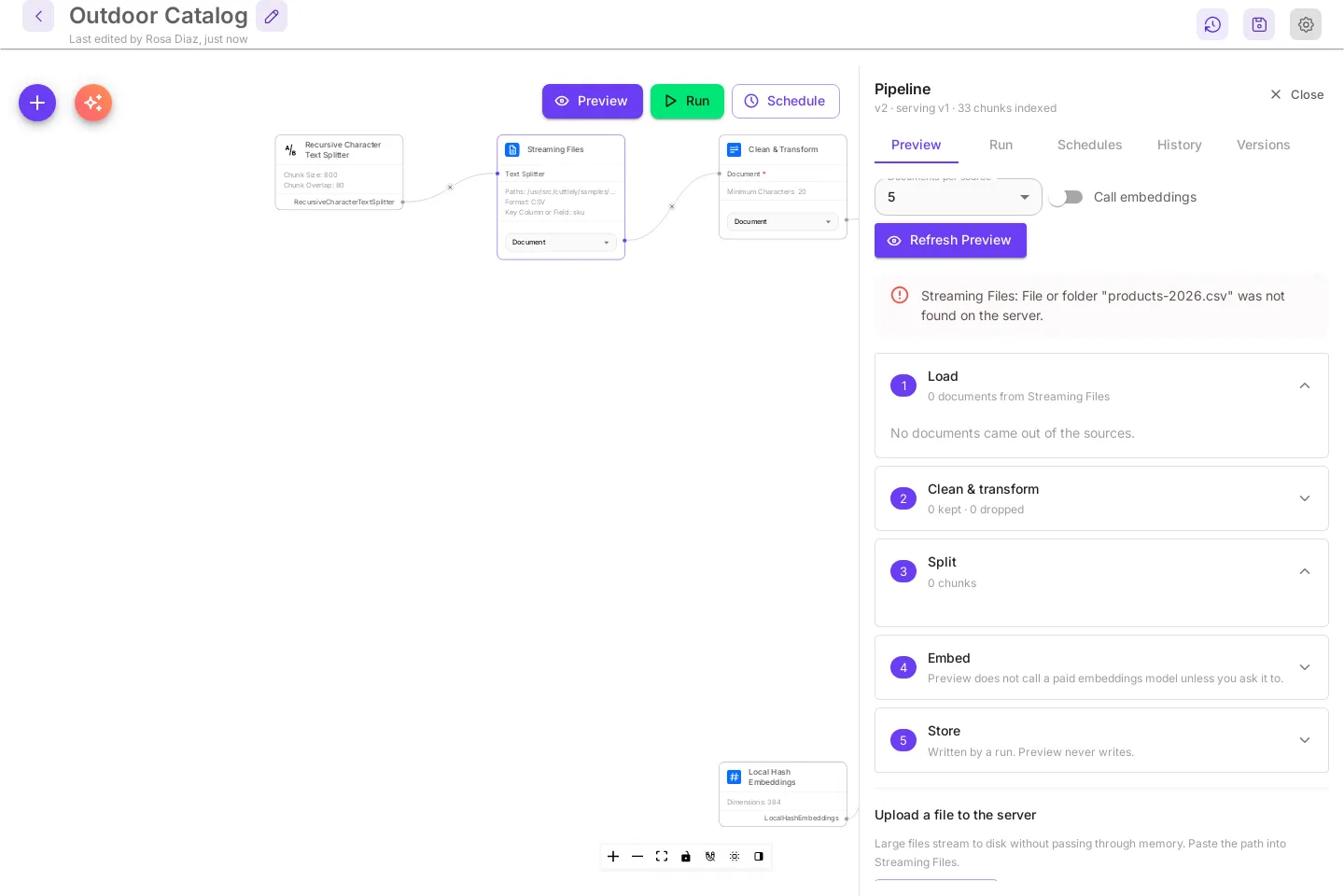

Preview shows the problem before you run.

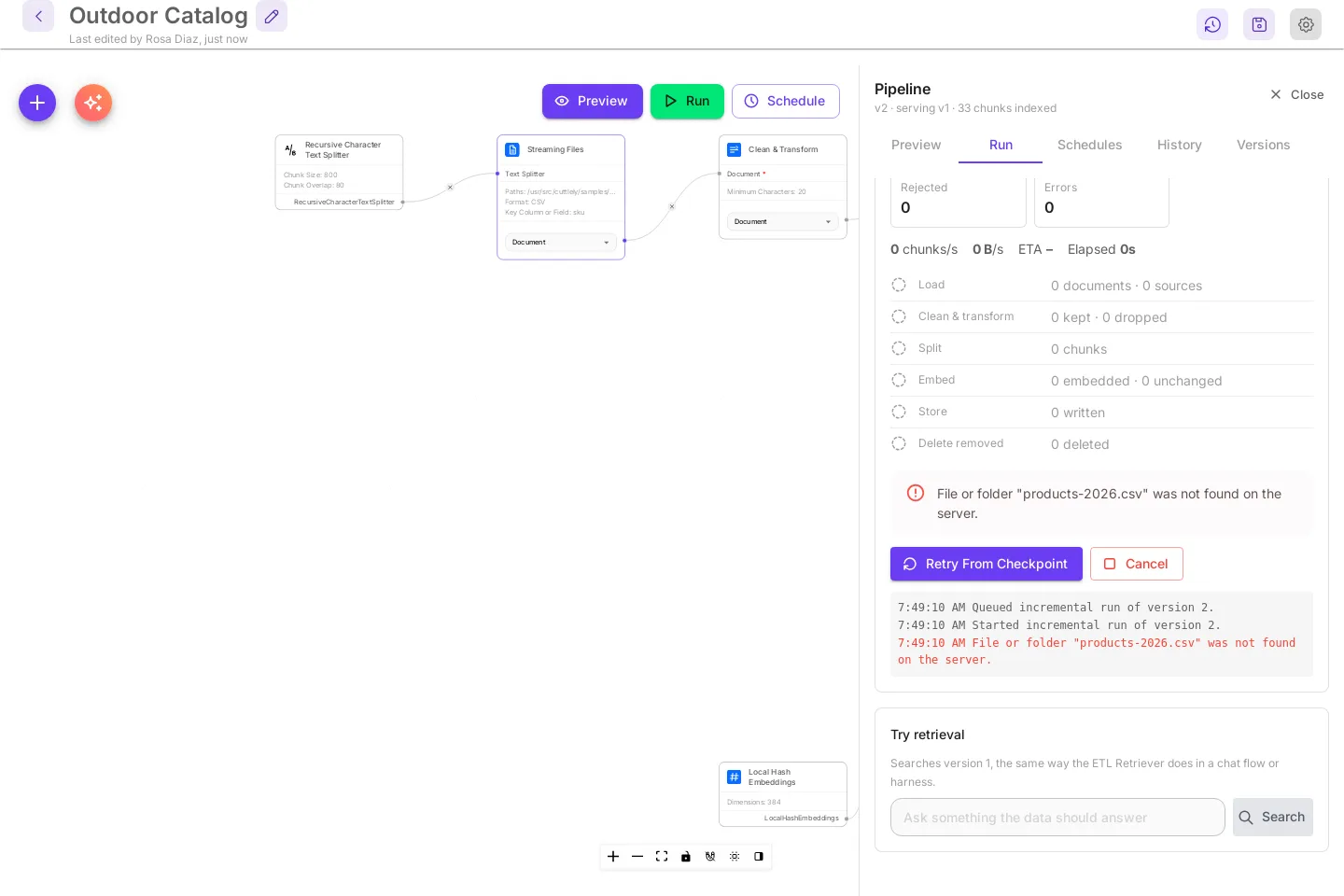

A run of that version fails with the same message.

This run failed before it wrote anything, so the served data is as it was. The panel still reads serving v1, and Try retrieval still searches version 1. A run can also fail partway, for example when the embeddings provider stops answering. The batches it wrote before it stopped are already in the store, and search can return them. Retry the run, or start a new one, so the store matches a finished run again.

• Retry From Checkpoint starts the same run again from where it stopped, on the same version, as attempt 2. Use it when the cause was outside the pipeline, such as a provider outage or a rate limit.
• When the pipeline itself is wrong, fix the node, save, and select Start Run. A retry would run the old version again.
• Cancel ends the failed run. It stays in History as cancelled.

Which folders a pipeline can read

A source path must be an absolute path on the server, without ... A pipeline can read:

• the folders in CUTTLELY_ETL_ROOTS, when it is set;
• this workspace’s uploads (see Upload a file);
• samples/etl in the install.

A Code Repository source can also read the Cuttlely checkout itself while CUTTLELY_ETL_ROOTS is not set. Any other path is refused with Path "..." is outside the folders pipelines may read (...). Set CUTTLELY_ETL_ROOTS on the server to the folders pipelines may read (comma-separated, each path or label=path) and restart it.

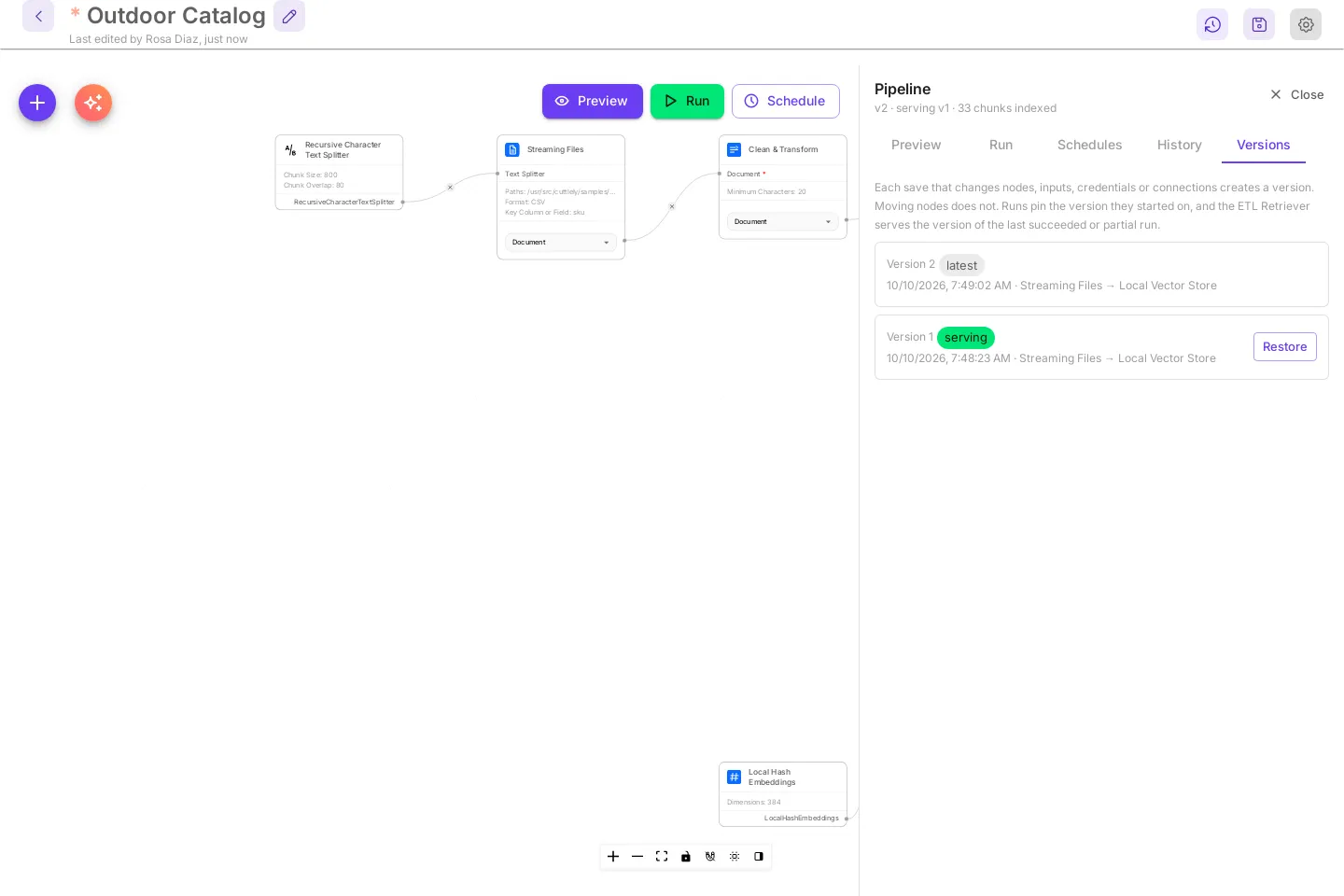

Restore an earlier version

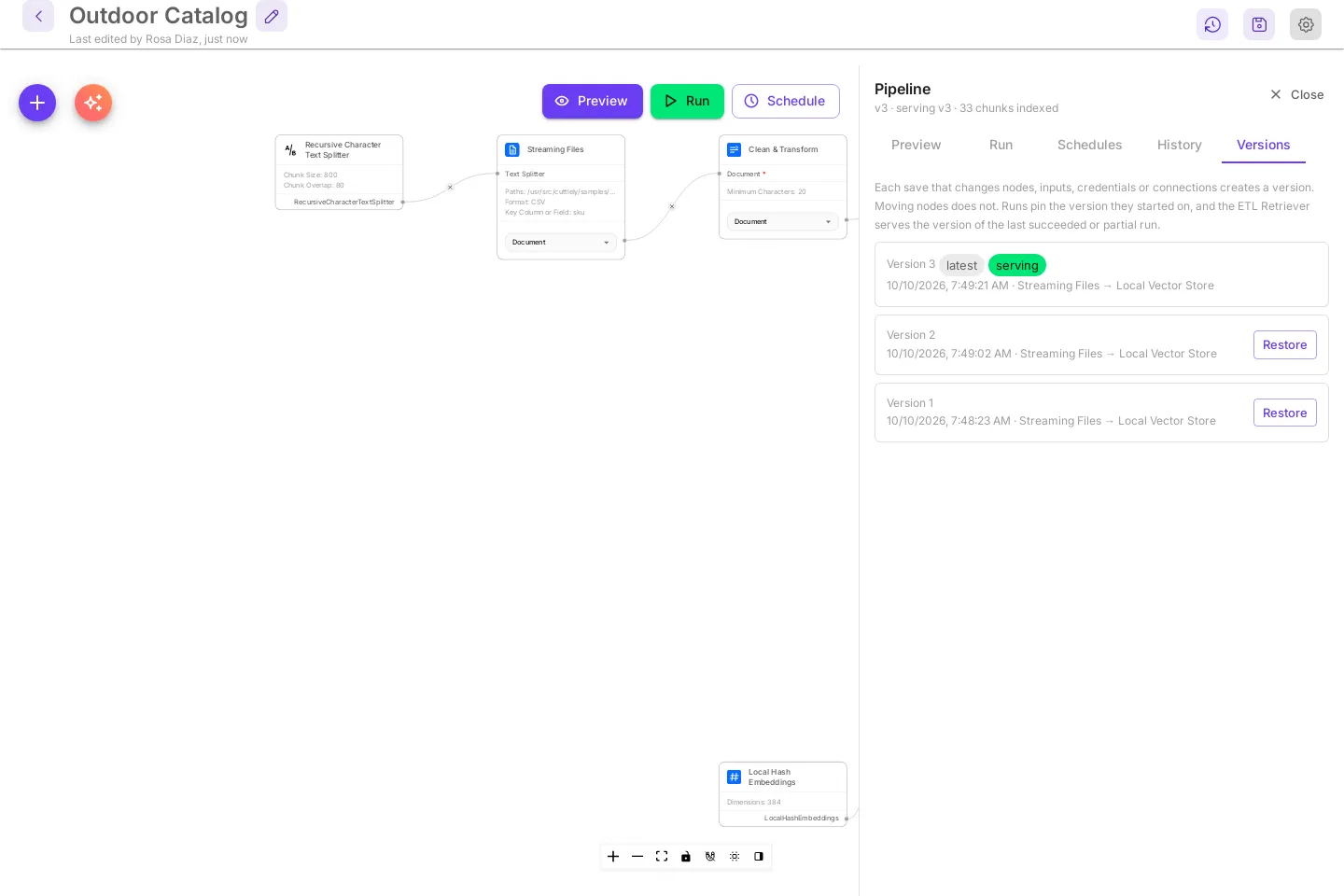

Every save that changes nodes, inputs, credentials, or connections creates a version. Moving nodes does not. Versions lists them, newest first.

1. Select Versions in the panel.
2. Select Restore on the version you want.

The canvas loads that version. Nothing is saved yet: an asterisk appears before the name, and Paths is back to outdoor-catalog.csv.

3. Select Save Pipeline. The restore is saved as a new version, version 3. Versions 1 and 2 stay in the list.
4. Run the pipeline. When the run succeeds, version 3 is serving.

The ETL Retriever serves the version of the last succeeded or partial run, not the last save. A version without a run is never served. A row marked incomplete is a version with a problem in its graph, such as a missing source, store, or embeddings connection. Fix the canvas and save. Version history at the top right is the same history for the whole canvas. See Version history.

Look at earlier runs

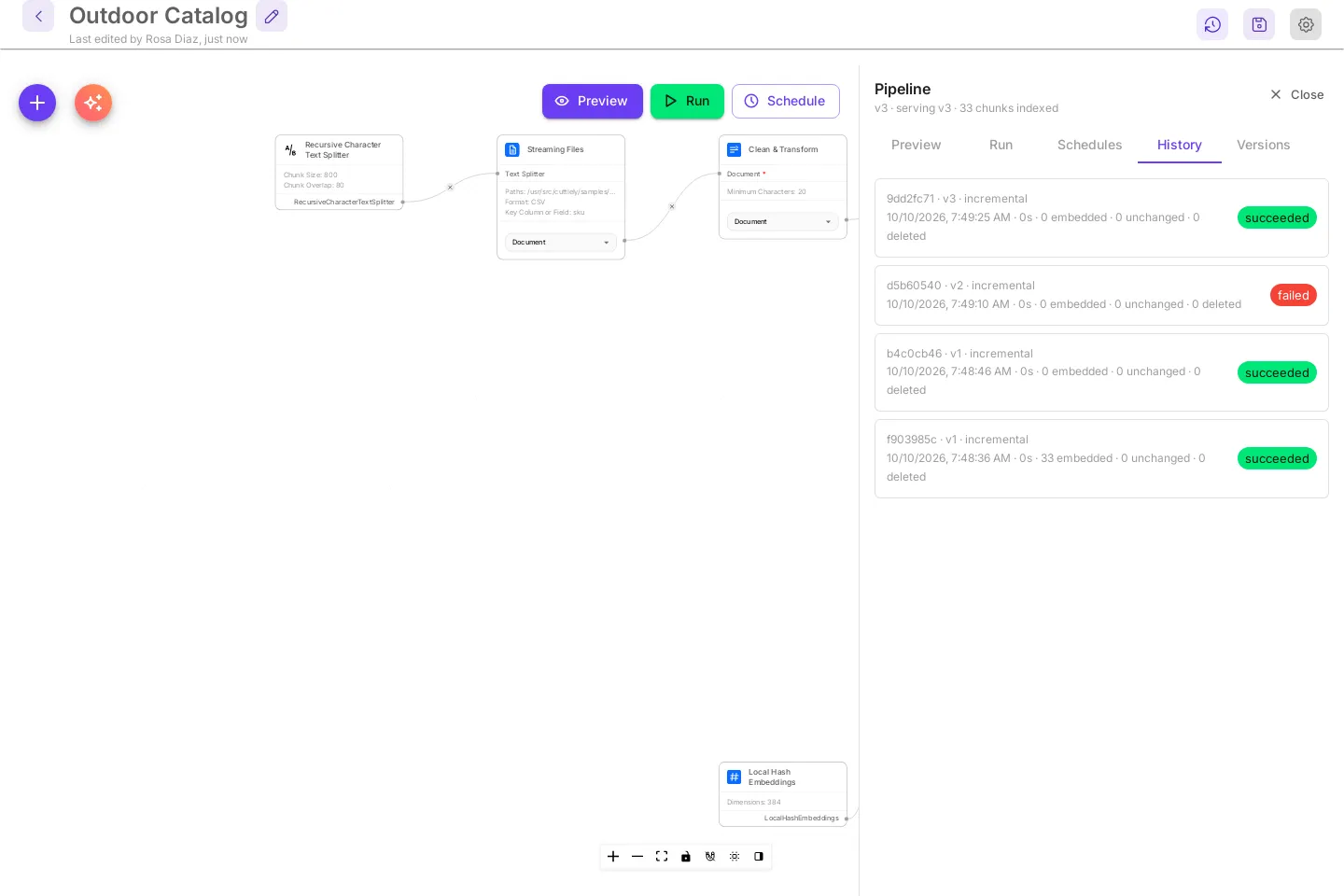

History lists every run of the pipeline, newest first. Each row has the run id, the version, the mode, the start time, how long it took, the counts, and the status.

Select a row to open that run’s card in Run. With no runs, the tab says No runs yet. Start one from the Run tab.

Run it on a schedule

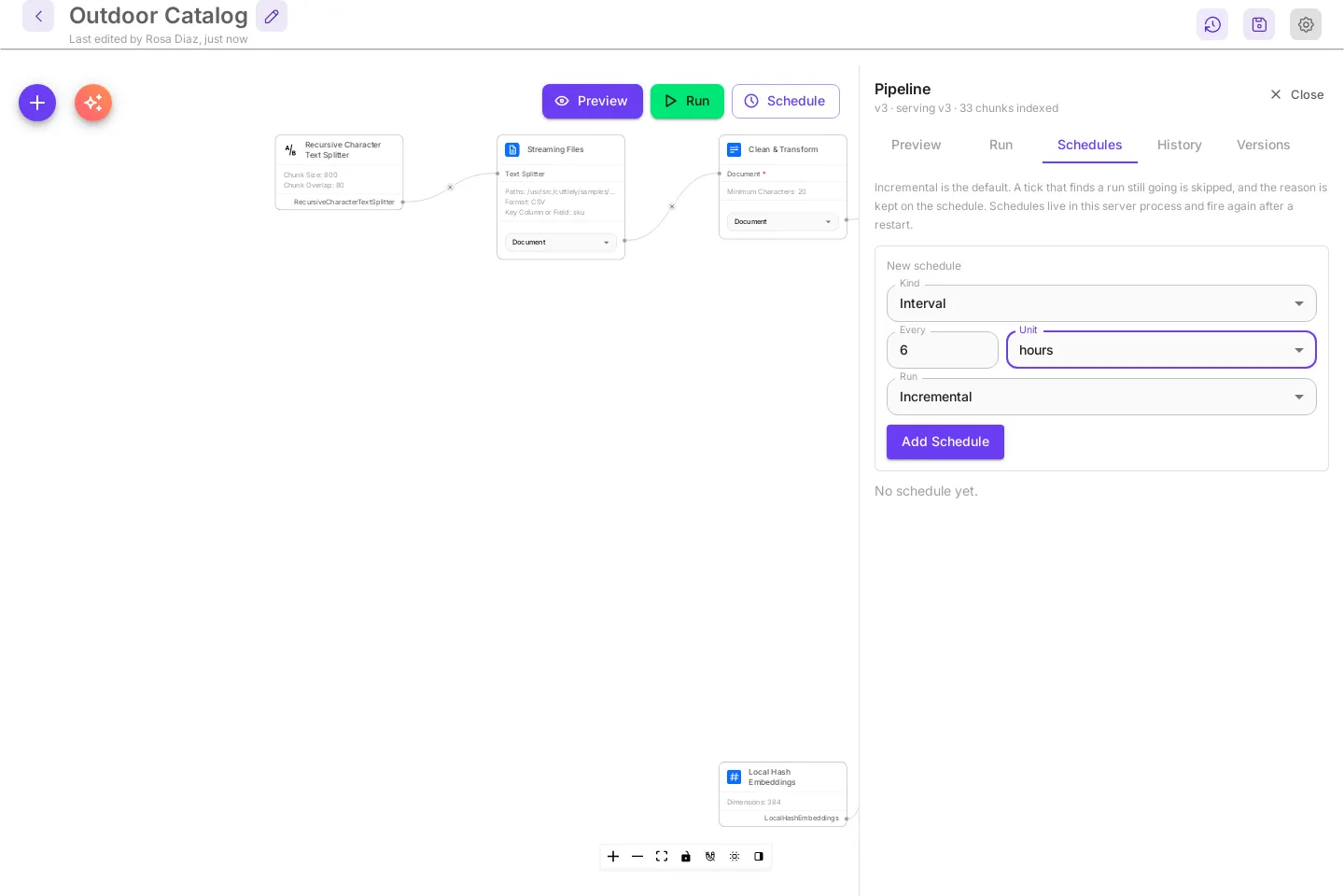

A schedule starts a run at a fixed interval or on a cron expression.

1. Select Schedule, or Schedules in the panel.
2. Under New schedule, leave Kind at Interval. Set Every to 6 and Unit to hours.
3. Leave Run at Incremental.
4. Select Add Schedule.

The schedule appears below the form.

• Kind Cron takes five fields, minute hour day month weekday, in UTC. 0 2 * * * runs at 02:00 UTC every day.
• Edit changes the schedule, Pause stops it until you select Resume, and Delete removes it.
• If a run is still going when the schedule fires, that tick is skipped, and the card says why under Last result.
• Schedules run inside the Cuttlely server. They do not fire while it is stopped, and they continue after a restart.

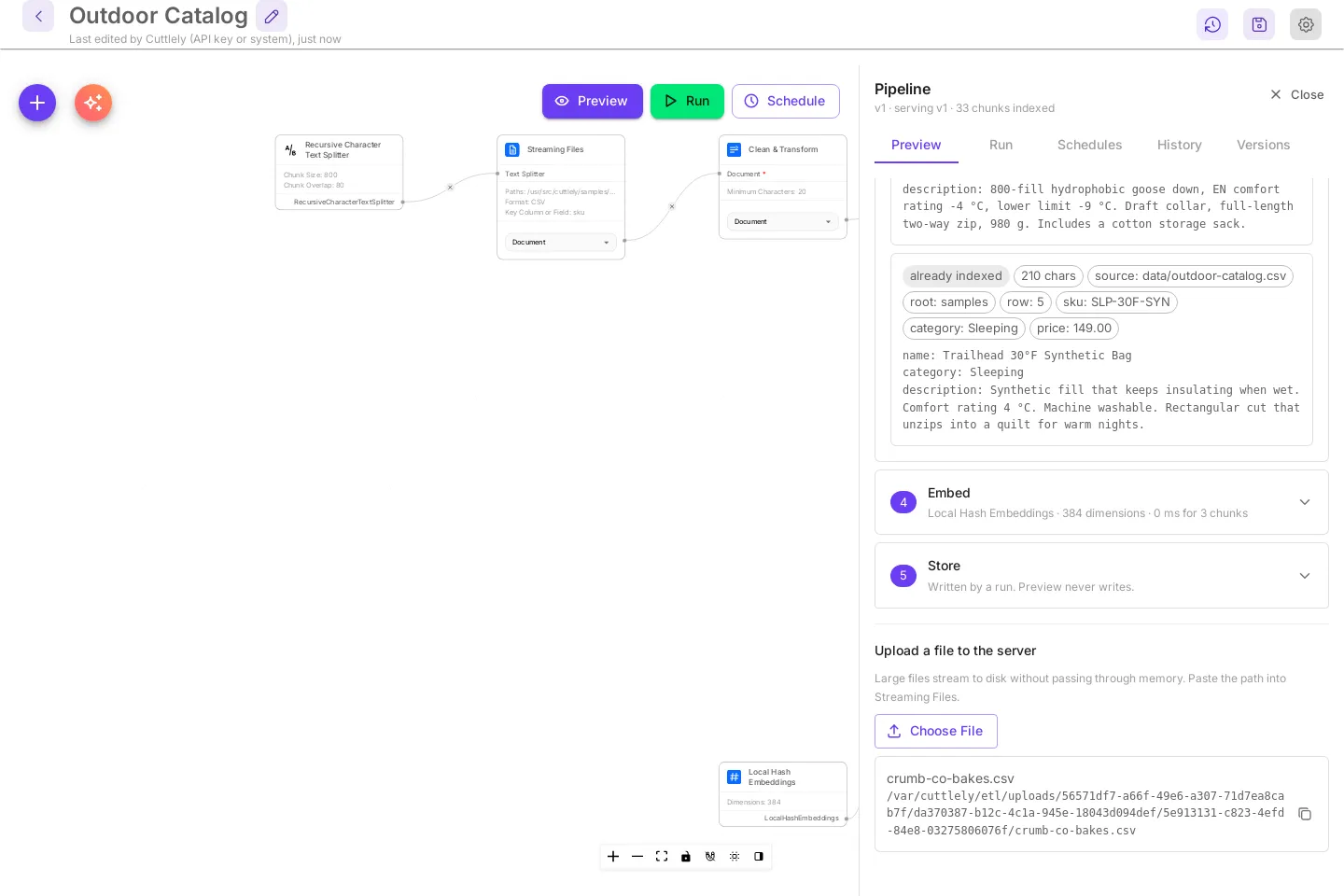

Upload a file to the server

A source reads files on the server, not on your computer. To use a file from your computer, upload it from the Preview tab.

1. Select Preview and scroll to Upload a file to the server.
2. Select Choose File and pick the file.
3. Select the copy icon (Copy path) next to the path that appears.
4. Paste the path as a new line in Paths on the Streaming Files node, save, and run.

Uploads go to CUTTLELY_ETL_DIR/uploads/, in a folder for your workspace. A pipeline in one workspace cannot read another workspace’s uploads.

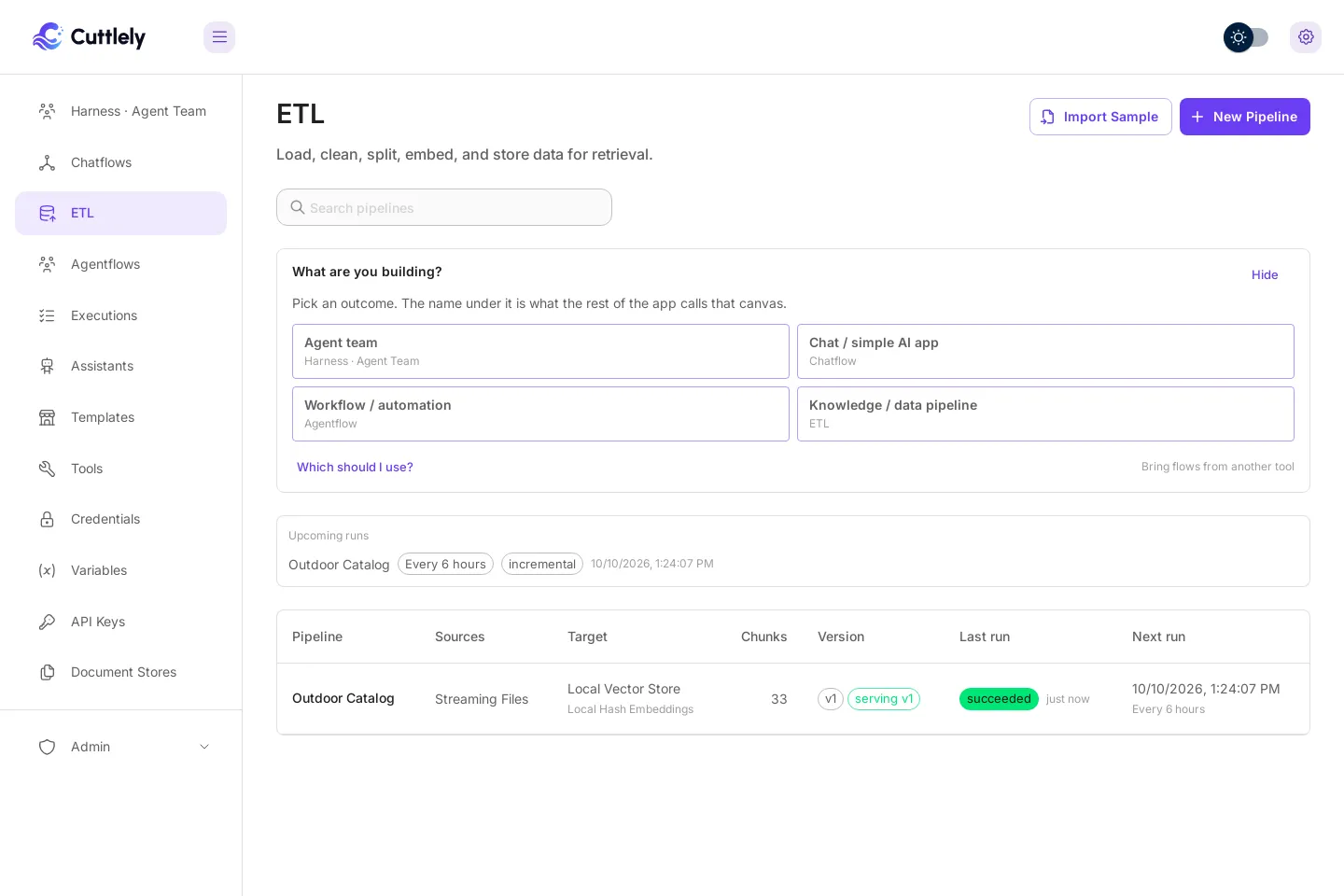

See all pipelines

Once a pipeline is saved, the ETL page lists it. Search pipelines filters the list by name. Upcoming runs shows the next scheduled run of each pipeline.

Column	Meaning
Pipeline	The pipeline name. Select the row to open its canvas.
Sources	The source nodes.
Target	The store node, with the embeddings node under it.
Chunks	Chunks indexed in the store.
Version	The latest version, and the version that is serving.
Last run	The status of the last run and when it ran.
Next run	The next scheduled run and its schedule.

Deleting a pipeline also deletes the vectors it wrote to its store, and to any store it used before you changed it. A run that is still going is cancelled first, and no run can start or be retried while the delete is going on. Other pipelines that use the same collection or namespace keep their vectors. If the store cannot be reached, for example because its credential was deleted, the pipeline is still deleted, and the server log names the store that kept its vectors. Two cases cannot be fully cleaned up. A store that makes up its own vector ids (SingleStore, Zep) and that the pipeline used before you moved it to another store keeps its vectors, and the server log names it. An earlier store also keeps chunks whose text or embeddings model changed after the move, because their ids are no longer known.

Use the pipeline in a harness

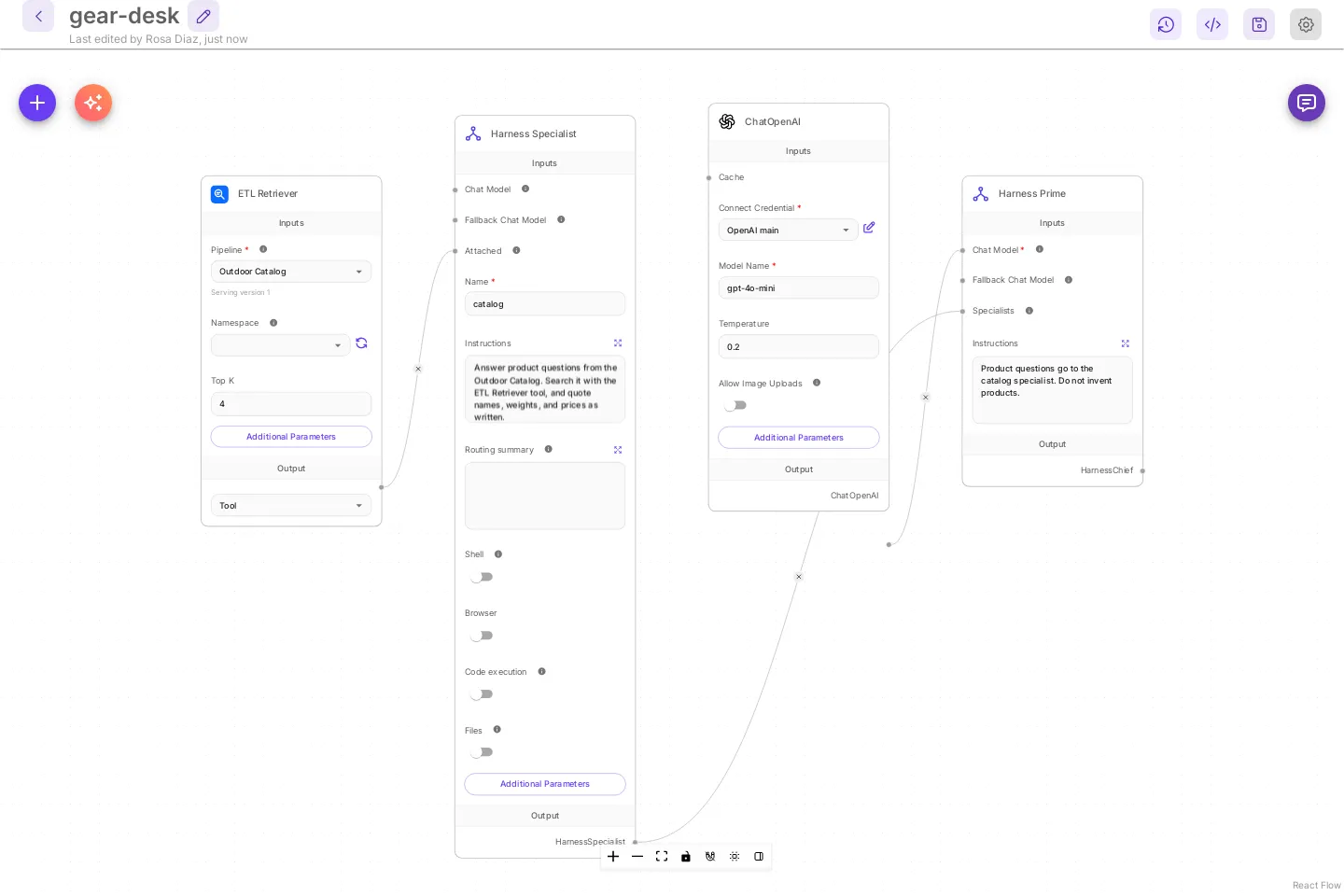

The ETL Retriever node searches a pipeline by name. Attach it to a Harness Specialist, and the specialist can look things up in your data. The example below is a harness named gear-desk with one specialist, catalog.

1. Open Harness · Agent Team and select New agent team. Add Harness Prime, one Harness Specialist, and an OpenAI chat model connected to Chat Model on Harness Prime, as in Harnesses.

2. Select + (Add Node), type ETL Retriever, and drag ETL Retriever from Tools onto the canvas.

3. Drag from the ETL Retriever output dot to the Attached dot on the Harness Specialist.

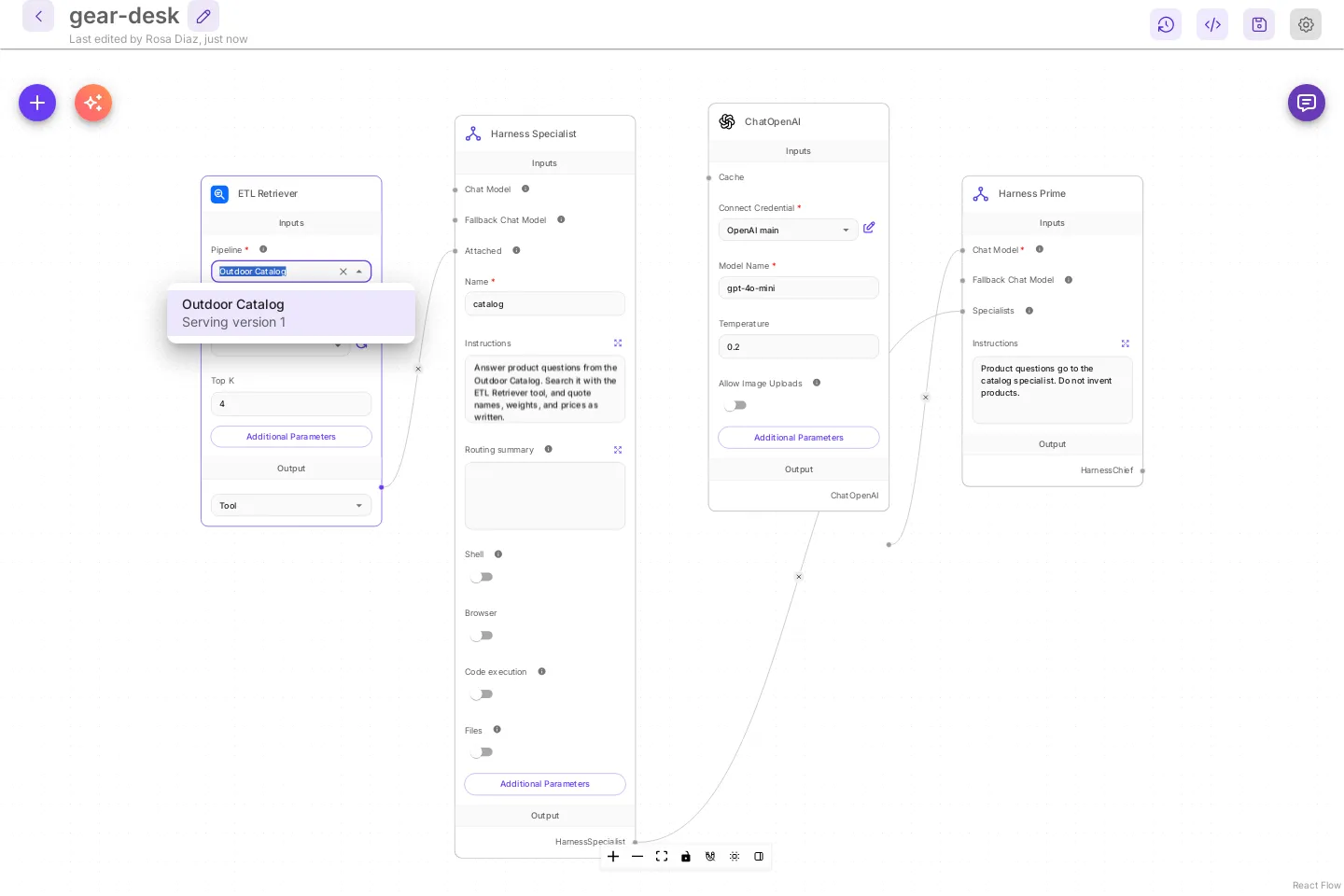

4. Under Pipeline, select Outdoor Catalog. Each pipeline in the list shows the version it serves. A pipeline with no successful run says No successful run yet.



5. Name the specialist catalog. Give it instructions such as Answer product questions from the Outdoor Catalog. Search it with the ETL Retriever tool, and quote names, weights, and prices as written.

6. Give Harness Prime instructions such as Product questions go to the catalog specialist. Do not invent products.

7. Save the harness as gear-desk.

ETL Retriever field	Meaning
Pipeline	The pipeline, by name. If you rename the pipeline, select it here again and save.
Namespace	Shown after you pick a pipeline, and only when it has written a named namespace. Leave it empty to search the serving version.
Top K	How many chunks a search returns. Default 4.
Tool Name (Additional Parameters)	The tool name the model sees. Defaults to search_ and the pipeline name.
Tool Description (Additional Parameters)	Tells the model when to search this data. Defaults to a sentence that names the pipeline.
Return Source Documents (Additional Parameters)	Also returns the chunks as source documents.
Output	Tool for a specialist or an agent. Retriever for a chain that takes a retriever.

Search uses the embeddings model and the store of the version it searches, so the retriever needs no embeddings node of its own. With Namespace empty, that is the serving version. With a namespace selected, it is the newest succeeded or partial version that wrote that namespace.

Ask it

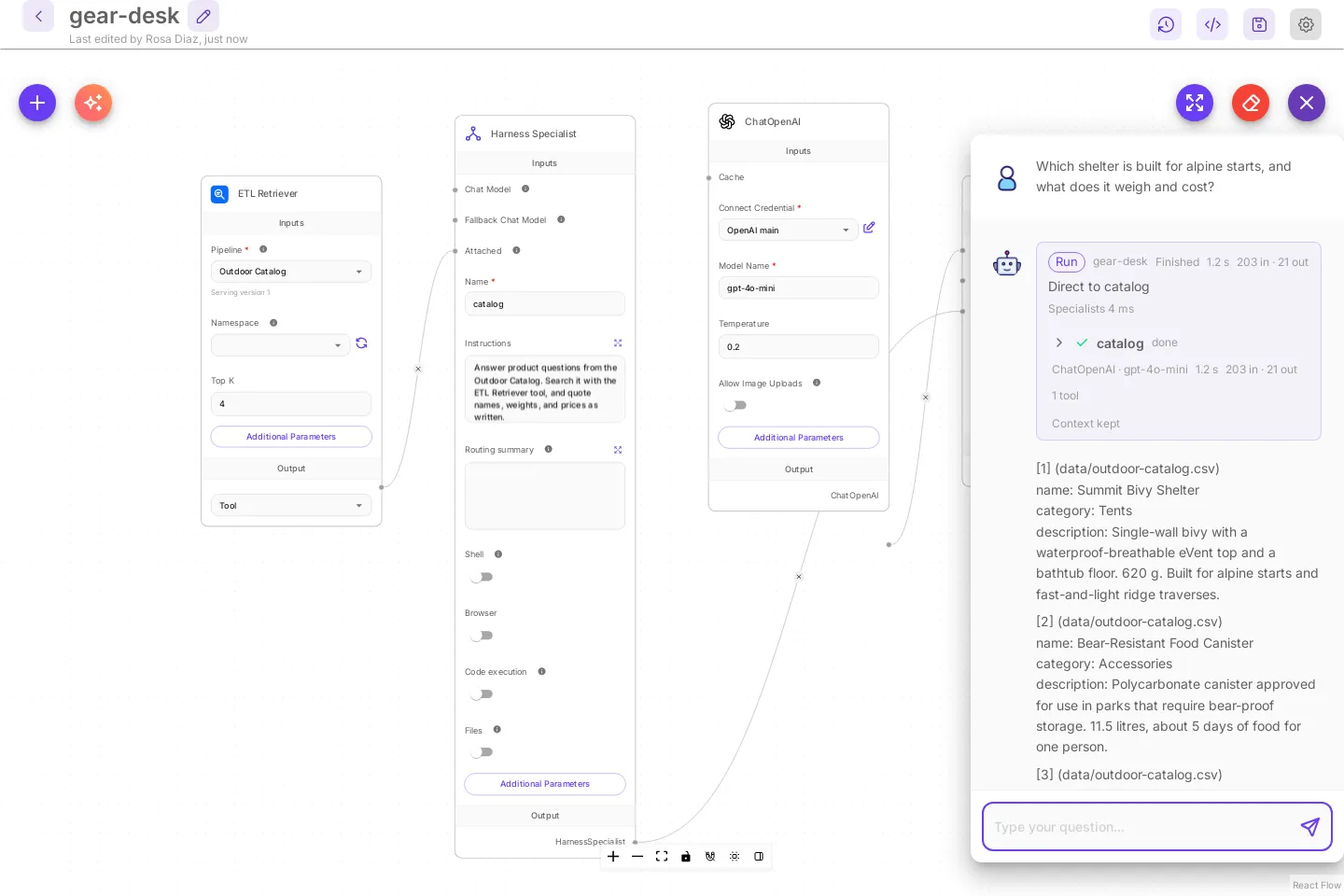

Select the chat button and ask: Which shelter is built for alpine starts, and what does it weigh and cost?

The Run card says Direct to catalog. When a harness has exactly one specialist and that specialist has exactly one tool and nothing else, Harness Prime skips routing and the handoff. The model only fills in the search query, and the search results are the answer. Each result starts with its number and source, then the chunk.

For a written answer, give the harness a second specialist or give the specialist a second tool. Harness Prime then routes the question and writes the answer from the specialist’s results.

Use it in a chatflow

Set Output to Tool and connect the ETL Retriever to an agent’s tools, or set it to Retriever and connect it where a chain takes a retriever. The search is the same.

Troubleshooting

You see	What to do
File or folder "..." was not found on the server.	The path is wrong, or the file is on your computer instead of the server. Fix Paths, or upload the file, then save and start a new run.
Path "..." is outside the folders pipelines may read (...)	Upload the file, or add its folder to CUTTLELY_ETL_ROOTS and restart the server. See Which folders a pipeline can read.
Path "..." is not absolute. Give an absolute path on the server.	Give the full path, starting with /.
Save the pipeline to create its first version, then run it.	A new pipeline has no version yet. Select Save Pipeline.
Save your changes first. Each save that changes the pipeline creates a new version.	A run uses the last saved version. Save, then start the run.
Retry From Checkpoint fails with the same error	The retry runs the same version. Fix the node, save, and select Start Run.
The run is partial	Some records were rejected, or a file could not be read and kept its old chunks. The log says which and why. Fix the source and run again. A partial run is still served.
reject_ratio_exceeded: ...	More than 5% of the records were rejected. Nothing was deleted and the served version is the same. Fix the source data and run again.
Search results match words but miss the meaning	Local Hash Embeddings match words. Use a provider embeddings node and run a Full rebuild. See Better matches.
ETL pipeline "..." has no successful run yet. Run it from the ETL menu first.	The ETL Retriever needs a served version. Run the pipeline until a run succeeds.
No ETL pipeline is named "...".	The pipeline was renamed or deleted, or is in another workspace. Select it again under Pipeline on the ETL Retriever and save.
Pick an ETL pipeline on the ETL Retriever node.	Pipeline is empty. Select one and save.
The schedule did not run	Check Last result on the schedule card. A tick is skipped while a run is still going, and schedules do not fire while the server is stopped.
Orange triangle on a card, Sync Nodes button	The node was saved with an older node version. Select Sync Nodes, then save.

Settings

These are environment variables on the server.

Variable	Default	Meaning
CUTTLELY_ETL_DIR	etl under the data folder; /var/cuttlely/etl in Docker and on Render	Where a pipeline’s own files live: its run records, local vector stores, and uploads.
CUTTLELY_ETL_ROOTS	not set	Folders pipelines may read, comma-separated. Each entry is a path or label=path.
CUTTLELY_ETL_CONCURRENCY	1	How many runs can go at the same time on this server. Others wait as queued.
CUTTLELY_ETL_SCHEDULE_MS	15000	How often, in milliseconds, the server checks whether a schedule is due.

The app database for a local install is still SQLite. ETL keeps its own records under CUTTLELY_ETL_DIR. On Docker and Render, keep that folder on a persistent disk so versions, runs, and vectors survive a restart. See Docker and Render.
